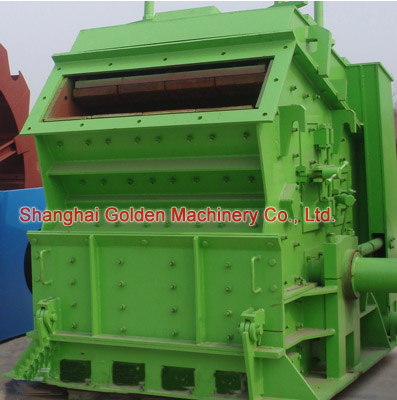

Impact crusher is used in crushing all kinds of materials whose fineness is below 500mm,and the pressure resistance around 360mpa. It has the features of big crushing rate, efficient crushing, easy maintenance and cubic shape with final product. It is an ideal mining equipment for high road and water conservancy. With perfect features and good performance, impact crusher is widely used in high road consruction, water conservancy and construction process of gravel and so on. It has a better accability in granite,limestone and cobble,etc.
Features and benefitesImpact plate with a special shape,wear- resistant liner plate,specially in hard mining crush,high efficicency and reduction ratio.the final production is cubic shape,required adjustment the output feed fineness,simplifying the process of the crushing. 1.Big output opening,high crushing cavity,suitble in high hardness,big pieses and less power ;
2.The gap in the impact and the hammer plate can be adjusted,efficient control the output feed fineness, the final production has good shape;
3.Tight strucure, good equipment rigidity,big rotational inertia;
4.High hammer plate,big impact resistance and wear resistance.;
5.No-board conection,easy maintenance and rellable operation;
6.Full-featured,high-efficiency,small dentel wear and high overall efficiency.

Model	Spec (mm)	Feed Opening size (mm)	Max feed size (mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overall dimensions (L×W×H)(mm)
PF-1007	φ1000×700	400×700	300	37-45	55	9.5	2400×1558×2660
PF-1010	φ1000×1050	400×1080	350	50-80	75	12.2	2400×2250×2660
PF-1210	φ1250×1050	400×1080	350	70-120	110	14.1	2690×2338×2890
PF-1214	φ1250×1400	400×1080	350	80-180	132	18.6	2690×2688×2890
PF-1315	φ1300×1500	860×1520	500	150-220	200	24	2860×2800×3050
PF-1316	φ1320×1600	1690×860	500	170-280	200	25.5	3096×2850×3050
